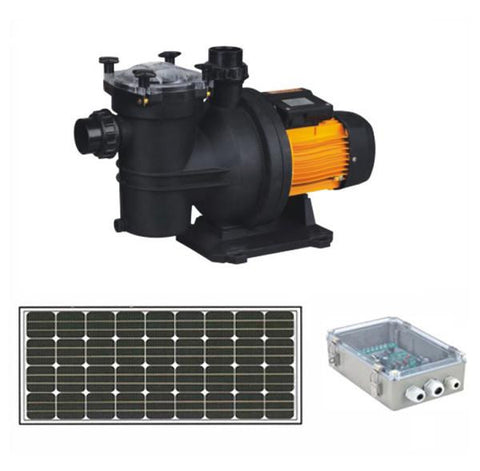

Solar Power Spa Swimming Pool Water DC PUMP & CONTROLLER System 1.5 - 2 HP 1200W

Suitable for Medium to Large size pool.

Suitable for All Pools including Salt, Chlorine, In-ground and Above Ground



Feature:

The pump system come complete Automatic Solar Pool Pump Controller (3 water level sensors etc)

Pump just require connect to solar panels which not require any 120V power to operate. .

Note: solar panel not include;

1.5 - 2 HP pump designed to run with 4-6 solar panels for a standard swimming pool. Solar panels sold separately.

Solar Pump Controller have feature: Run dry Protection.3 Water level Sensor

Power Direct indication light. Startup when Solar panel supplies energy >= 10%

Error current  & Error Voltage indicator light.

High Grade Stainless Steel motor Shaft (Suit salt Water, Compare Others)



Motor Feature:

Closed, externally ventilated

Heavy Duty Motor housing (Won't get overheat even continuous running)

Safety and reliability (Continues rated)

Current protector & terminal protection



Technical Specifications:

• Operating V : DC
• Motor : Brush-less
• Rated power: 1200W / 1.5 - 2 HP
• Voltage: 96V
• Solar Panels requirement: 280W X 6 panels in series connection
• Note: Solar Panels not include
• MAX.FLOW  31 X m3/h
• MAX.HEAD  18 M
• Inlet and Outlet: 2.5".
• Rating: Continuous
• Suction/max.positive inlet lift---3.0M
• Max.Casing pressure---2.5bar
• Max.Water temperature ---+60 C
